by krabob

A Simple yet Powerful Artificial Intelligence Algorithm.

One of the Key Word about Interfaces today is Responsive Design: For a Mobile App, interfaces not only have to be the simplest possible, they have to be clear, and they have to propose only awaited functionalities that users will understand: they had to be adaptative.

So not surprisingly, Math Touch Book displays nothing else than what you wrote on the screen. Then touching a Math expression unfolds a Menu that proposes a short list of features according to that expression.

Capture d’écran 2016-02-02 à 11.35.32

Adaptative Menus are not new, but here, the program must “think” to guess the list of functionalities, operations, modifiers: Expressions can be developed or not, Simplified or not, resolved or not. And notice, some of those features can take multiple passes, like Equation resolutions.
It might surprise you, but a bit of Artificial Intelligence (AI) intervenes at this level: The same basic AI algorithm is used, both to select the menu entries and to resolve equations.

With the advent of multi-threaded mobile CPU and GPUs this last decade, Robotics and Artificial intelligence are subject to permanent breakthrough. On the software side the AI subject becomes bigger every day. But large industrial AI programs for robots, that have to compute an impressive sum of data, and more little algorithms managing equations (like  MathTouch Book does) have things in common: they both manage their objects using Graph Theory, and they both create and test algorithms before applying them for real.

AIArticleGraphtheory

Let’s have a look at what Math Touch Book does when it resolves an equation:
First, Equations are defined by Graph Trees, where the root element is an equal sign.
Elements in a tree are all attached to another. That’s what Graph Theory is about and we, computer scientists, usually think it’s a nice way to manage data.

A good Graph theory framework should also have methods for cloning graphs, detaching branches of the tree, re-attach them elsewhere, and the ability to use one or another element allocators, amongst other things.

MathIAClassExtensions

Then we have some bricks here, that represents schematically classes available in the program, it’s a “Object Oriented” concept. This scheme tells us each of these classes are “GraphActions”, and each is able to modify a graph in their own way. They are available to be used by the Artificial Intelligence.

So now that we know the shape of the data, the tools to modify it, we want the program to find itself a way to resolve the equation. How ?

An equation resolution algorithm can be expressed as a list of “GraphActions”. But what GraphActions to use, in what order ?
And what happens if the program find a wrong algorithm ? the graph would be destroyed !
No, because we can clone the graph and test modifications on the clone.
we can also simply look at the shape of a graph, and decide to modify it in a way or another according to its shape. (You now understand the usefulness of having clone functions and special allocators in your graph framework.)
Written in pseudo-code, you can find a resolution algorithm like this:

class changeThisShapeAction extends GraphAction
class changeTHATShapeAction extends GraphAction
...

get_Action_List_For_Resolution( listOfActions , equationGraph )
{
    tempGraphAllocator // init an allocator to experiement

    // create a temporary clone to experiment
    cloneOfEquation = equationGraph.clone(tempGraphAllocator)

    // this loop search a shape that can be resolved
  while( cloneOfEquation has no resolvable shape )
  {
     if(cloneOfEquation has "this" shape)
     {
       didSomething = changeThisShapeAction.
         modifyGraph(tempGraphAllocator,cloneOfEquation);
       if(didSomething) listOfActions.add(changeThisShapeAction)
     }
     if(cloneOfEquation has THAT shape)
     {
       didSomething = changeTHATShapeAction.
        modifyGraph(tempGraphAllocator,cloneOfEquation);
       if(didSomething) listOfActions.add(changeTHATShapeAction)
     }
     (... here are a lots of modifier actions to test accordingly)
 } // end of loop

 // here equation could be resolvable or not :
 if(cloneOfEquation first degree) listOfActions.add(finaliseFirstDegree)
 if(cloneOfEquation is quadratic) listOfActions.add(finaliseQuadratic)
 if(cloneOfEquation not resolvable) listOfActions.add(finaliseNoSolution)

// the magic here, is we just cancel everything done on the tempGraph...
 tempGraphAllocator.free()

// We return the exact list of modifiers that finds the solution.
 return listOfActions
}

Acting innocently, with just one accumulator list, a loop and an object oriented set of classes, we have here an algorithm that … creates an algorithm. and it works !
The human brain actually does more or less this “imagine what is the most interesting thing to do, and then do it” game. The temporary allocated memory can be seen as a short-lived “imagination”.  Obviously the real code is a little bigger, but the main idea is here.

IAHead

To me, the greatest of all things is that, at this level, the algorithm is found, it is available for use, but you can or cannot use it inside the application; it’s up to the user, he may use another modifier, and in some way this “search what to do” Artificial Intelligence algorithm can also be seen as a recursive extension of the Natural Intelligence of the user, that decides, the same way, to use or not a feature. So it may demonstrates that Artificial intelligence and Natural Intelligence can cooperate.
In this perspective, one already can speak of Human Bananas.

banana-crop





by krabob

A First Person Shooter in Spherical Geometry

FPS (First Person Shooters) have become very popular and never ceased to improve since twenty years. They propose players to explore worlds in three dimensions, in a very simple and intuitive way. In this constantly renewed kind of game, using the same rules and codes, original variations sometimes appear:

sphericalgame

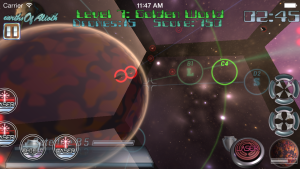

In “Earths Of Alioth”,  released in 2015, Space has become Spherical: the notion of high and low is completely gone: and for good reason, we are on satellites orbiting distant exoplanets in a fairly realistic space environment.

However, most FPS rules are present. Only the movement mode changes: You must jump from satellite to satellite, pursuing drones, also in orbit. The issue of space management, essential for the player, is thereby upset: How to move toward or away from another point of space? How to find the shortest path from one point to another by jumping on the satellites, themselves in movements? These issues are more likely common to a Space Agency, but they find immediate intuitive responses in the game.Capture d’écran du Simulateur iOS 22 avr. 2014 11.47.23

According to us, these intuitions are natural because there are links between two-dimensional geometry, three-dimensional, and spherical geometry, the latter sharing mathematical properties with the previous two.
Video games have experienced a two-dimensional era, then a three-dimensional, it makes sense that more “Spherical Games” make their appearances.  Today’s Haptic screens and tablets fit that perfectly.
“Earths Of Alioth” is available on iTunes App Store and Google Play.

The app was not found in the store. 🙁 #wpappbox

Links: → Visit Store → Search Google

The app was not found in the store. 🙁 #wpappbox

Links: → Visit Store → Search Google

by krabob

Why did I start MathTouchBook ?

I started Math Touch Book after I did my first video game on mobile, one year ago.
I was researching new kinds of interfaces on tablets, and also sometimes I needed to  do some maths on a rough book.
I slowly realized that the equations and functions you usually draw there could gain a lot if it was managed on a haptic screen:

mtbdoigt
When you do math on a paper, you often write the first shape of an expression, then you write a second modified shape, then a third,… you constantly invert, simplify, develop, factorise what you write. Consequently, you can hardly imagine how big the result will be on the page, and mathematicians spend their lives struggling with page layouts.
Fortunately, Equations can also be seen in “four dimensions”, transforming through time.
Clearly, a mobile application could manage that aspect.

I think I could be able to program an engine using graphical processing units (gpu) that would draw equations in a vectorial space, and would be able to do morphing between those shapes.

Doing my previous video game, I actually made a Glyph Engine flexible enough to do that. Then a bit of tricks into the graph theory paradigm would be enough to make it a useful living mathematical tool.
post1blog
A second important aspect of such a tool would be automatic alignment. One of the key for learning mathematics is to write clear, correctly aligned expressions. Automatizing this could help newcomers. Plus, every math tools force the users to type one line expressions with a lot of parentheses that are hardly understandable. A vectorial space could avoid that.

Another idea came while I was reading a book about the life of Richard Feynman. He told how he could see equations in colors when he was a young boy, and how it helped him to learn.  Synestesy, Something great and easy to implement.

At this point, I knew I could make a tool within a year of work, with a quite precise workflow. So the development began.
